High-Speed Extrusion Line for PVC Corrugated Pipe-Single/Double Wall Corrugated PVC Pipe Extrusion Line-ZhongyunTech
PRODUCT

Single/Double Wall Corrugated PVC Pipe Extrusion Line

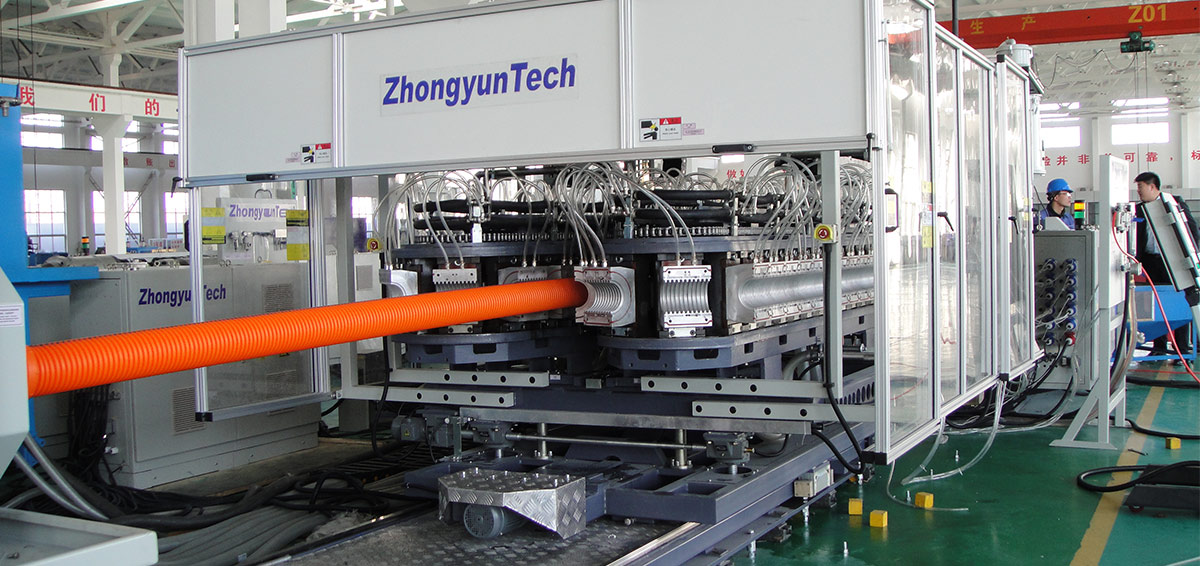

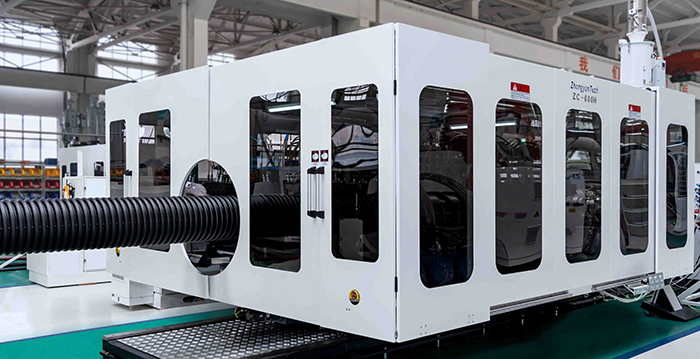

High-Speed Extrusion Line for PVC Corrugated Pipe

Features

Pressure water-cooling for mould blocks greatly increase the production speed.

Low energy consumption help to cut production cost.

Efficient vacuum system for forming perfect pipes.

Mould block temperature control system helps to optimize the pipe quality both appearance and inside.

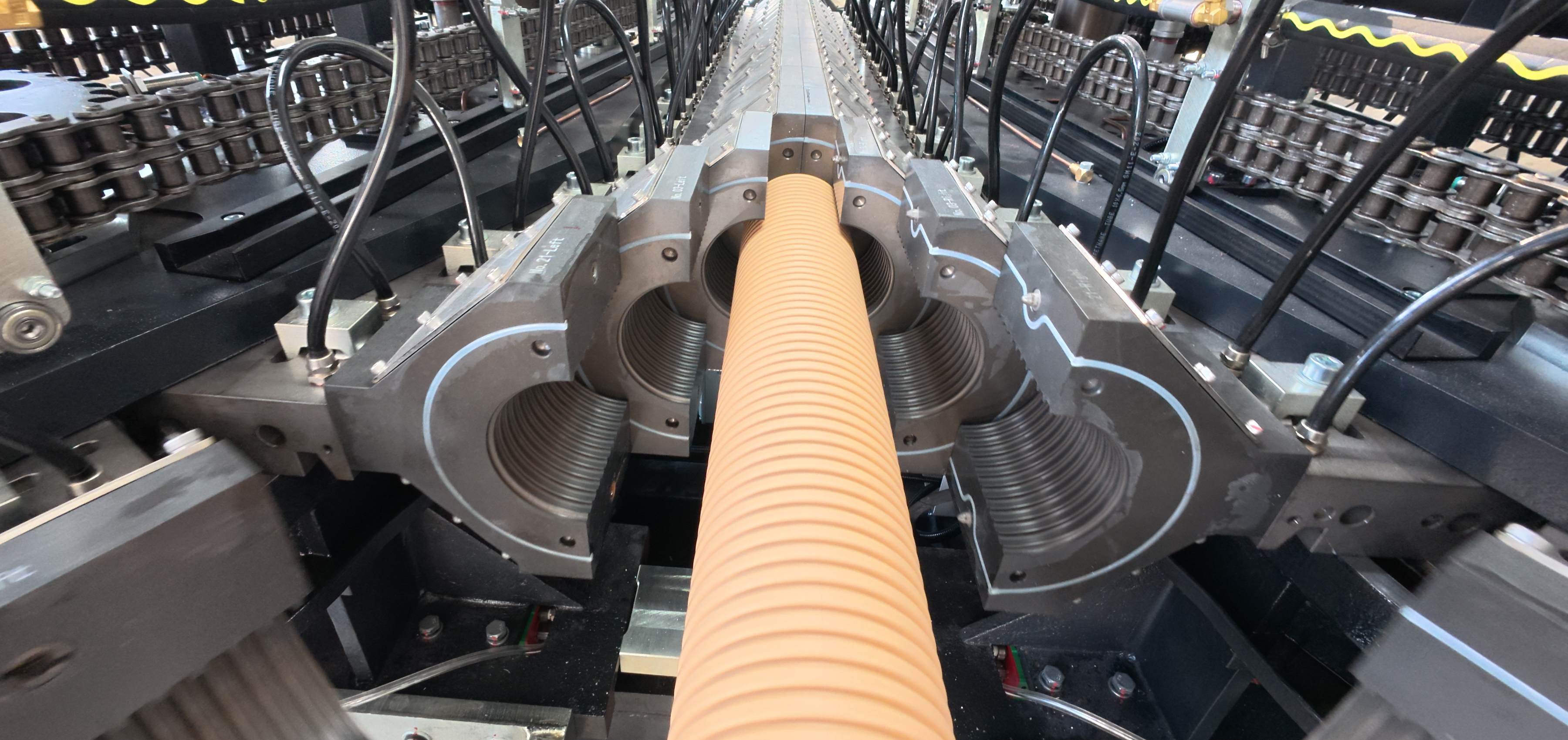

Easy and quick changeover between different sizes of moulds.

The complete extrusion line runs full-automatically.

Corrugator and extruders are synchronously controlled.

Remote Service is available.

Toolings (moulds) are compatible between small size, middle size and large size corrugated pipe machines.

Field of application

Cable protection conduit for telecom cables and electricity cables.

Drainage pipes for streets, squares, golf course and sports field.

Storm water and sewage.

Main Technical Parameters

Model
Min. Dia
Max. Dia
Installed Gross Capacity
Normal Working Power
Max. Speed
Max. Output
ZC-180H
OD16mm
OD200mm
260kw
135kw
17.5m/min
500kg/h
ZC-315H
OD90mm
OD315mm
380kw
230kw
10m/min
900kg/h
ZC-630H
OD100mm
OD630mm
460kw
265kw
6m/min
1200kg/h
*

Based on the continuous optimization of product quality and performance, the product pictures and parameters involved in this page may be different from the real products. Zhongyun reserves the right to modify the appearance design and configuration parameters of the equipment without prior notice.
